Electrically conductive roller
Applied in: Mechanical Engineering | Other
- Previous
- Next
Problem, idea and solution
-
Problem

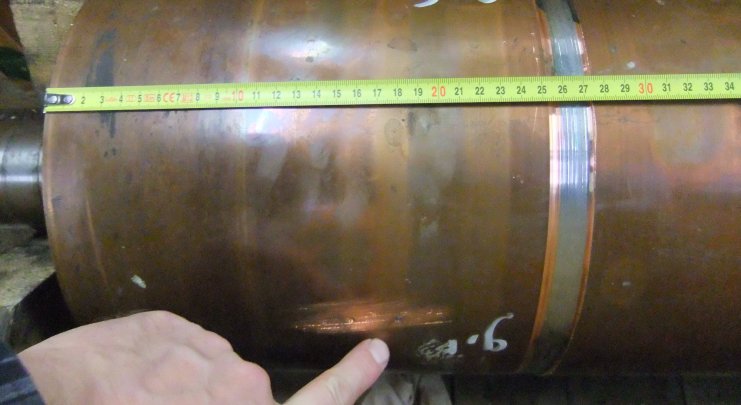

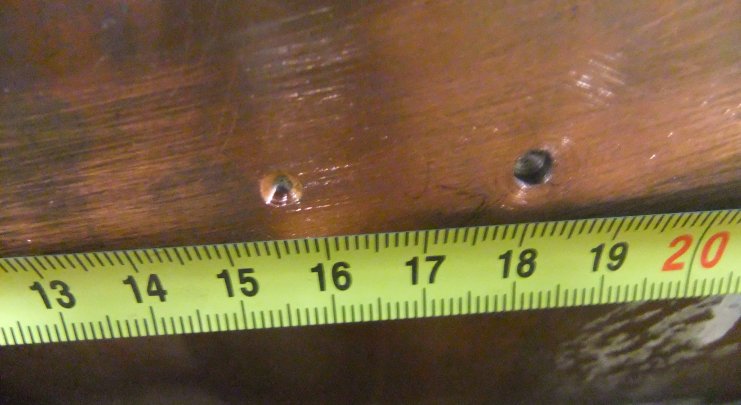

This paper guide roller is coated with copper to discharge static electricity. The copper layer is damaged or worn out.
-
Solution

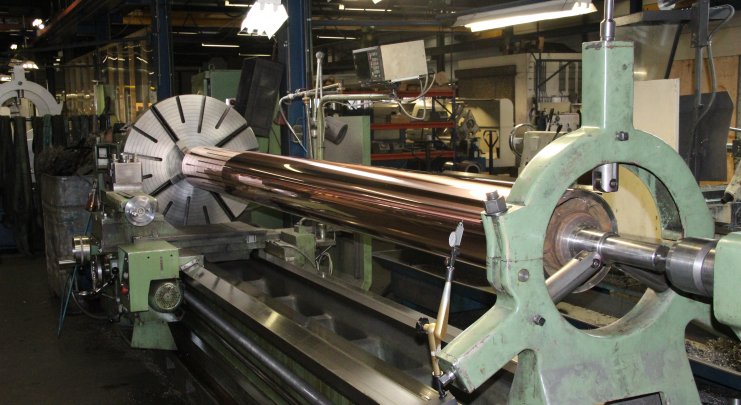

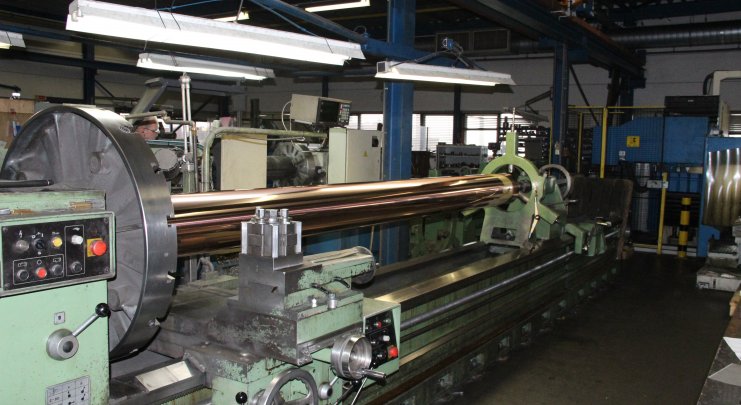

The roller is recoated, ground and then polished smooth.
-
Electricity & temperature
A type of wear that occurs as a result of a voltage differential causing spark erosion. This can lead to wear and creates a risk of...
-
Abrasive wear
Wear deformation caused by surfaces or particles rubbing on one another. The abrasive is made up of a hard and/or sharp...
Specifications
| Principle dimensions (LxWxH): Ø269x4.404mm | Base material: 1.0507 (St52.3) | Coating: Copper |
