Dispensing valve
Applied in: Food Processing
- Previous
- Next
Problem, idea and solution
-
Problem
This (milk)powder dispensing valve has too much clearance between the rotor and rotor housing. The seals are worn out and there are wear marks on the drive axle.
-
Solution

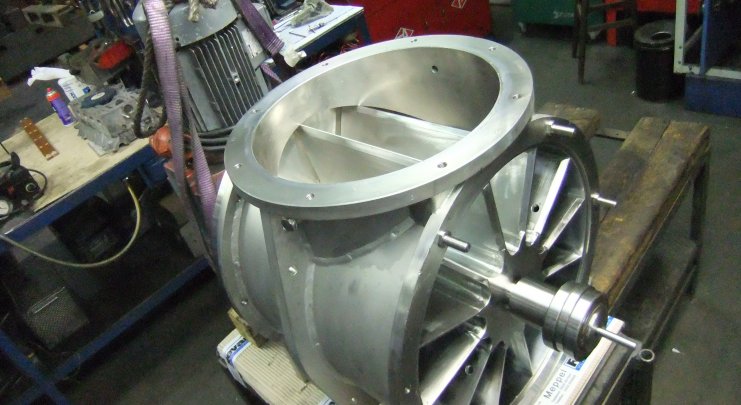

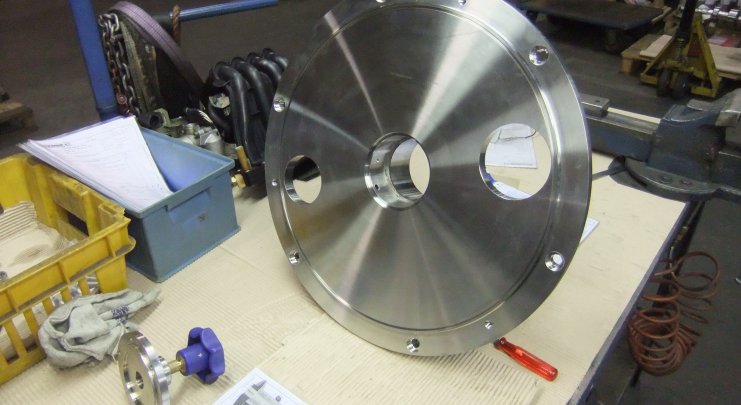

Revamo overhauled the complete dispensing valve.

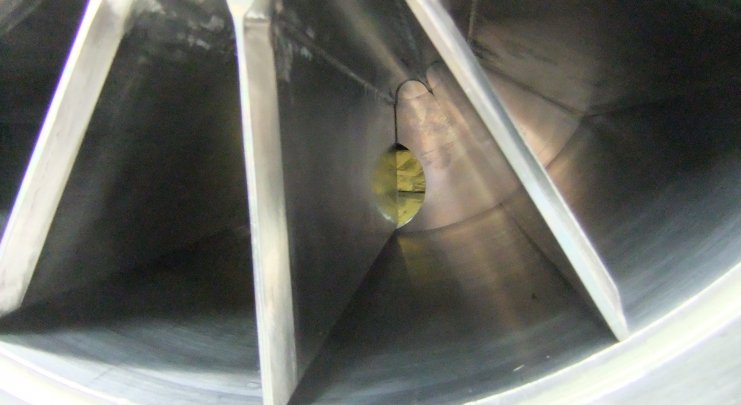

The rotor housing was "turned clean".

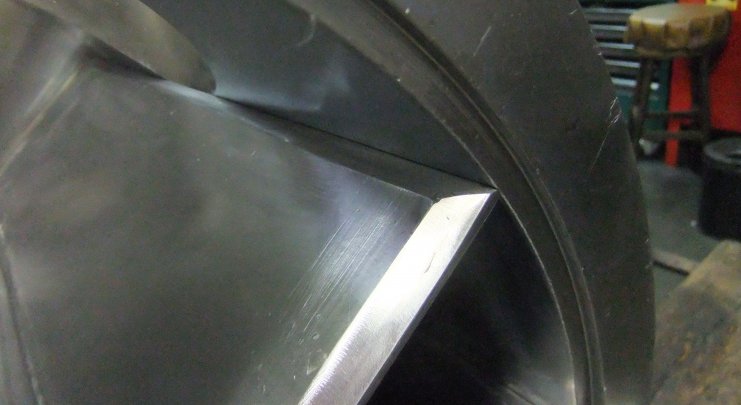

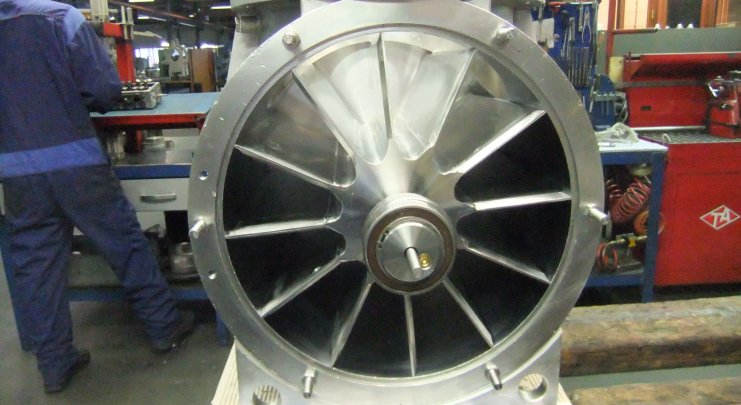

The rotor was radially and axially welded and re-turned. Stub axles were repaired by flame spraying.
-
Abrasive wear
Wear deformation caused by surfaces or particles rubbing on one another. The abrasive is made up of a hard and/or sharp...
-
Bearing fitting wear
A type of wear caused by insufficient lubrication or over-loading.
Specifications
| Principle dimensions (LxWxH): 750x900x850mm | Base material: 1.4404 (Aisi316) | Coating: Aisi 316 |
