Case studies
Shield electric motor
Applied in: Oil, Gas & Energy | Other
- Previous
- Next
Problem, idea and solution
-
Problem
Electric motor bearing fittings frequently become worn out.
-
Solution

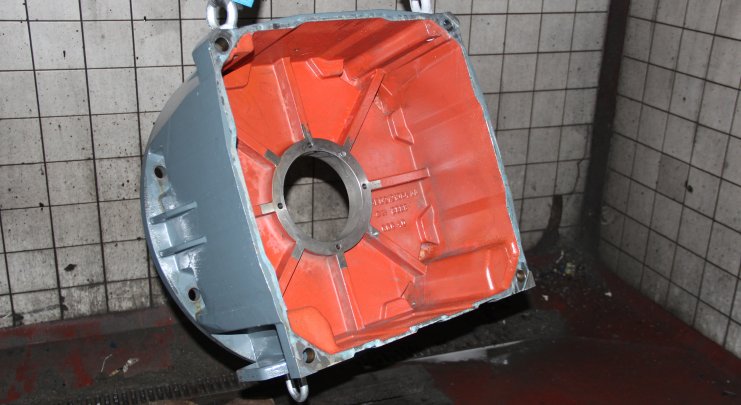

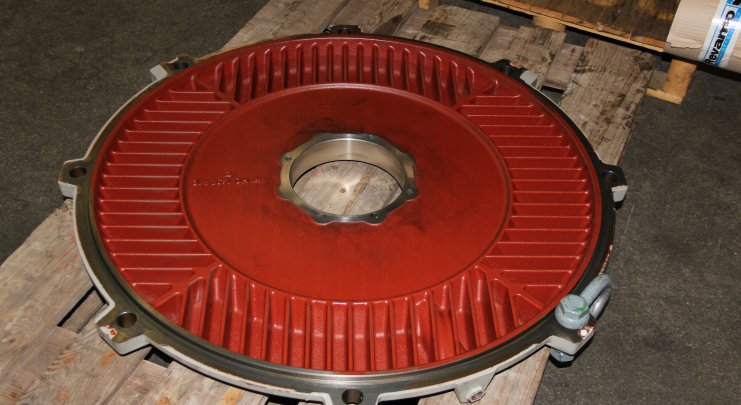

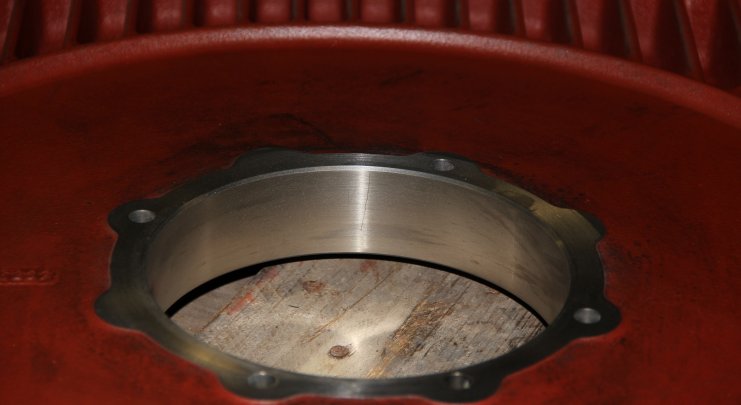

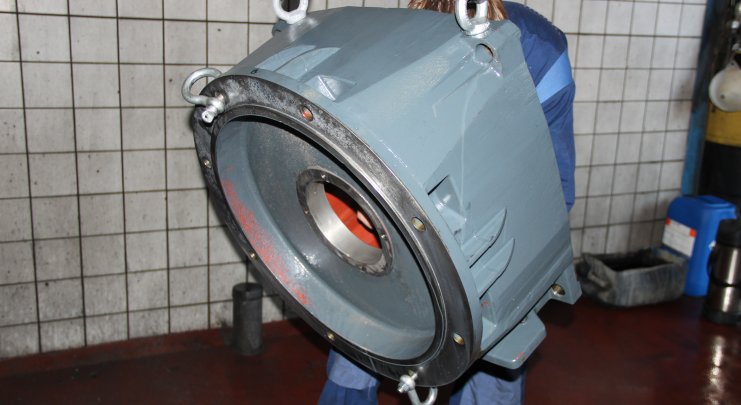

Revamo can repair the bearing bore in the plate as well as restore the rotor axle by flame spraying and grinding.
The rotor windings remain intact because the temperature of flame spraying remains relatively low.
A welding repair runs the risk of damage to the coil and buckling of the stub axles. -
Fretting (pitting)
Fretting is a type of wear that occurs as a result of undesired tiny movements between two components. Consequently, wear...
Specifications
| Principle dimensions (LxWxH): 660x660x305mm | Base material: 0.6040 (GG40) | Coating: NiAl / Chrome steel |
