Abradable sealing ring
Applied in: Oil, Gas & Energy
- Previous
- Next
Problem, idea and solution
-
Problem
The seals of turbine-/compressor rotor must be optimal to achieve maximum efficiency.
The temperature and the rotational speed of the turbine is high. The turbine housing and the seals are horizontally divisible. -
Solution

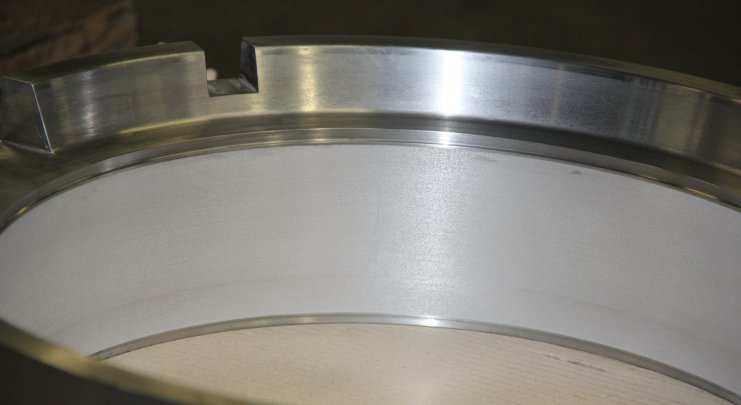

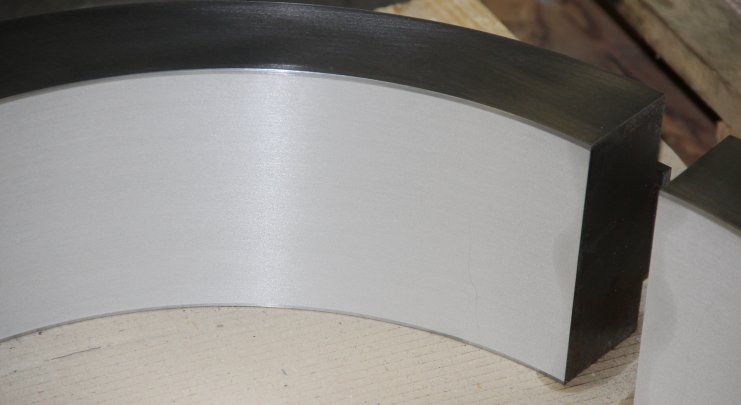

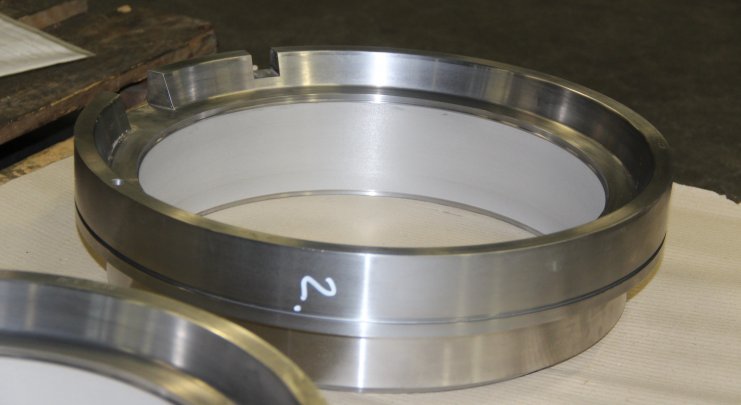

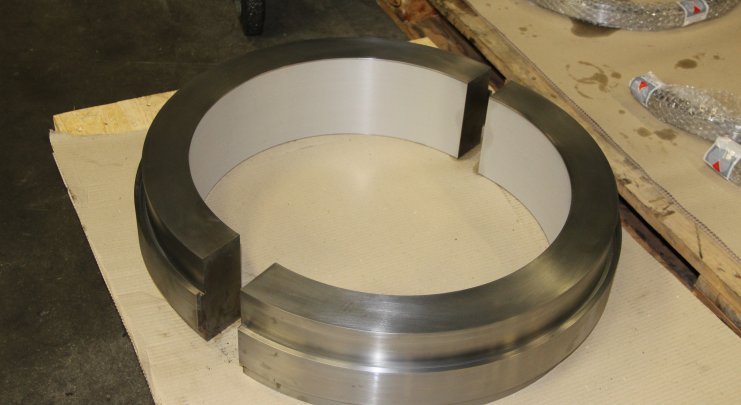

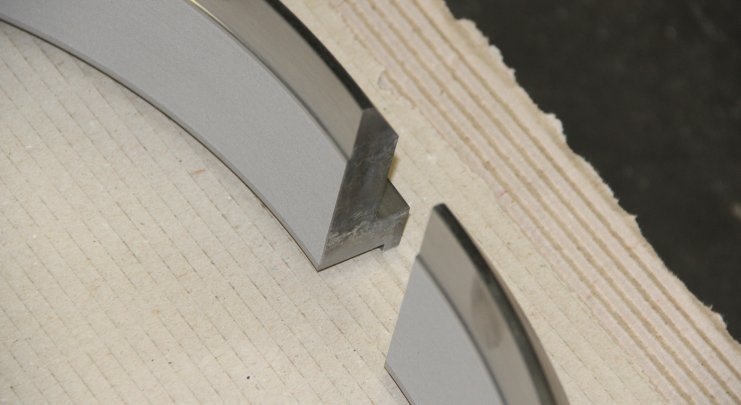

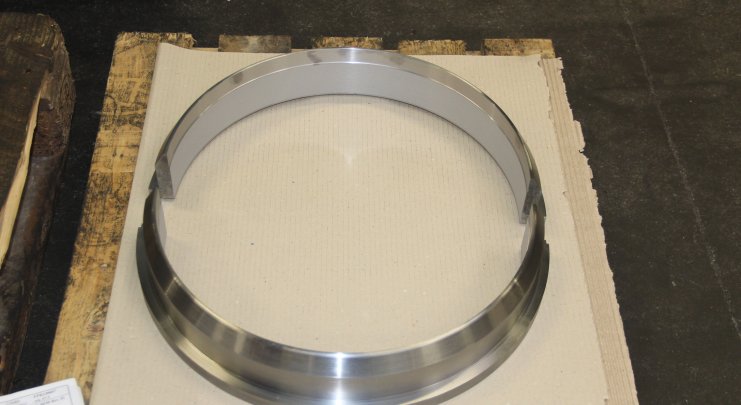

Revamo manufactures divisible seals with an abradable (sacrificial) coating. There is zero clearance between the seal and turbine. The seals allow access to the shaft. The accuracy is high, and the dividing plane absolutely cannot split.
-
Erosion
A type of wear that occurs when solid, liquid or gaseous elements move along the surface of a material and leave wear...
-
Abrasive wear
Wear deformation caused by surfaces or particles rubbing on one another. The abrasive is made up of a hard and/or sharp...
Specifications
| Principle dimensions (LxWxH): Ø150 - Ø550 mm | Base material: 1.0570 (St52.3) | Coating: AlSi-polyester |
