Problem, idea and solution
-
Problem

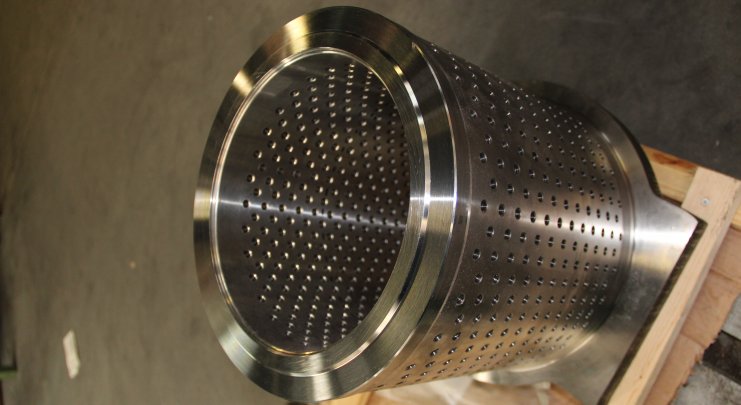

This component is a press filter which is used by the meat industry for the making of minced meat. The meat is forced through the holes by a piston. Small bones create grooves in the base material; blood and lye affect the base material.
-
Solution

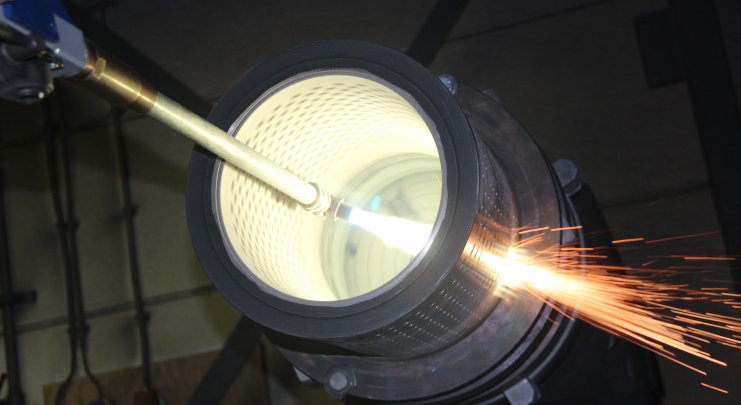

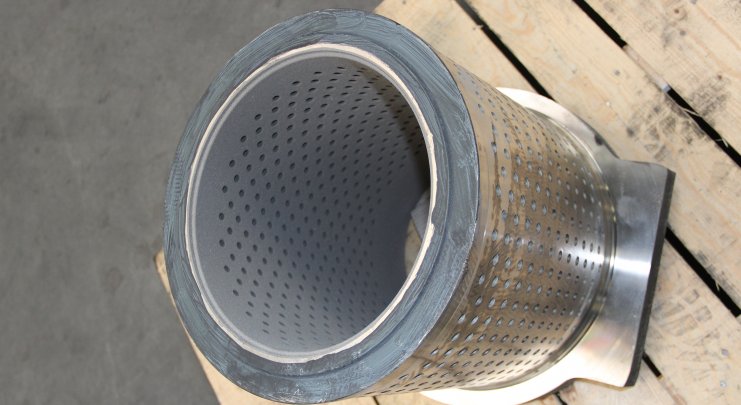

Revamo provides the inner surface of the pressure cylinder with a wear-resistant, chemical-resistant alloy coating and grinds it afterwards.
This gives maximum adhesion because the coating is fused with the base material. This is essential for food applications such as this.
-
Abrasive wear
Wear deformation caused by surfaces or particles rubbing on one another. The abrasive is made up of a hard and/or sharp...
-
Chemical attack
A type of wear that occurs as a result of an (electro)chemical reaction between the component and the surrounding...
Specifications
| Principle dimensions (LxWxH): Ø478x380mm | Base material: 1.4404 (Aisi316) | Coating: WcNi |
