Case studies
Piston rod
Applied in: Shipping | Mechanical Engineering
- Previous
- Next
Problem, idea and solution
-
Problem
The piston rods are used below sea level. They hardly ever move and this can lead to increased (adhesive) wear.
The piston rods must be (Lloyds) 3.2 certified.
-
Solution

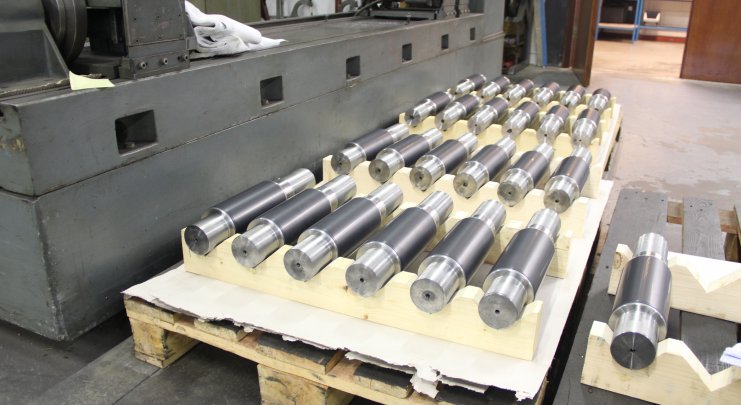

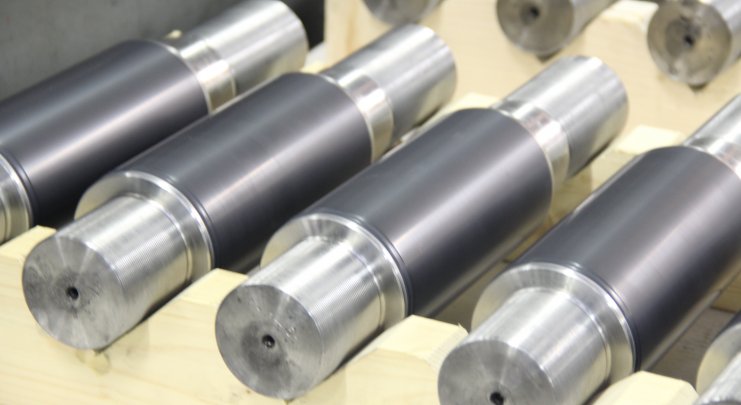

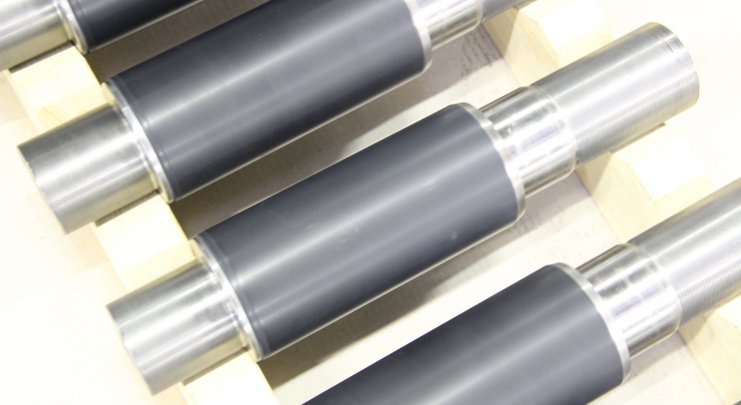

Revamo has manufactured these piston rods from duplex stainless steel and then provided with a ceramic coating.
This combination is resistant to seawater. The certification is completely taken care of by Revamo.
Revamo has regular projects with virtually all testing authorities.
-
Adhesive wear
A type of wear that occurs when components that slide over each other temporarily fuse together and break loose...
-
Chemical attack
A type of wear that occurs as a result of an (electro)chemical reaction between the component and the surrounding...
Specifications
| Principle dimensions (LxWxH): Ø90x410mm | Base material: 1.4462 (duplex) | Coating: Aluminum Oxide / Titanium Oxide |
