Hydraulic drive shaft
Applied in: Mechanical Engineering | Pump Industry
- Previous
- Next
Problem, idea and solution
-
Problem

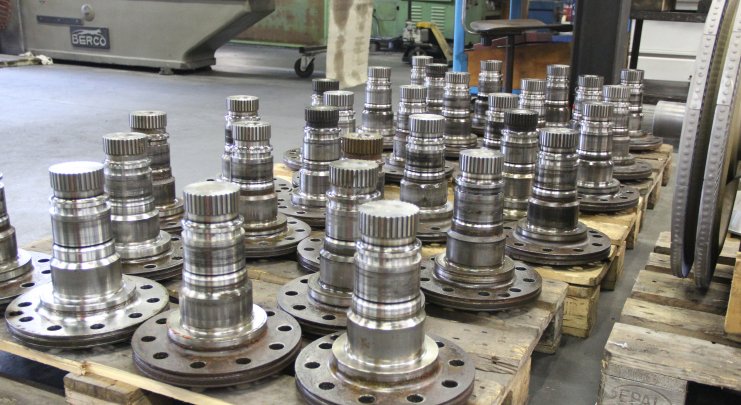

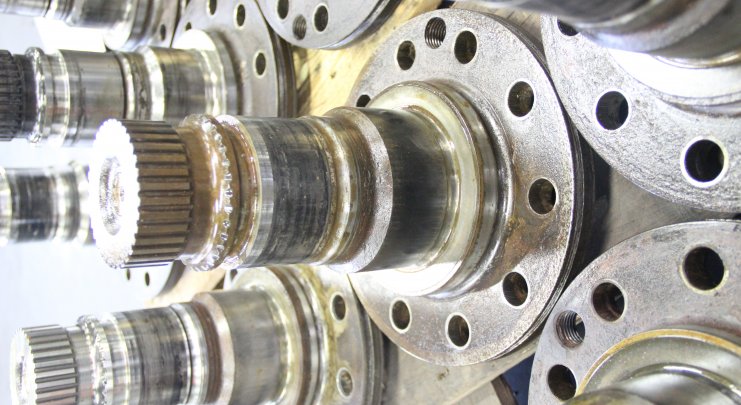

The standard stub axle of a hydraulic motor shows wear on the bearing and seal positions. Extreme running of the seals on the axle result in stress concentration. That can cause the axle to break.
-
Solution

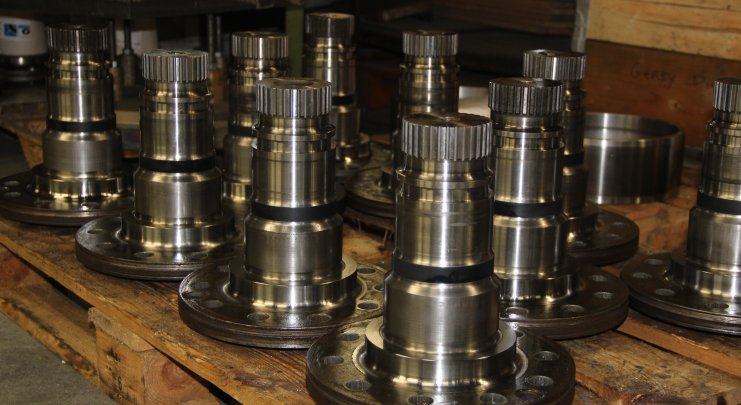

Revamo repairs and enhances the axles by flame spraying and re-bushing.

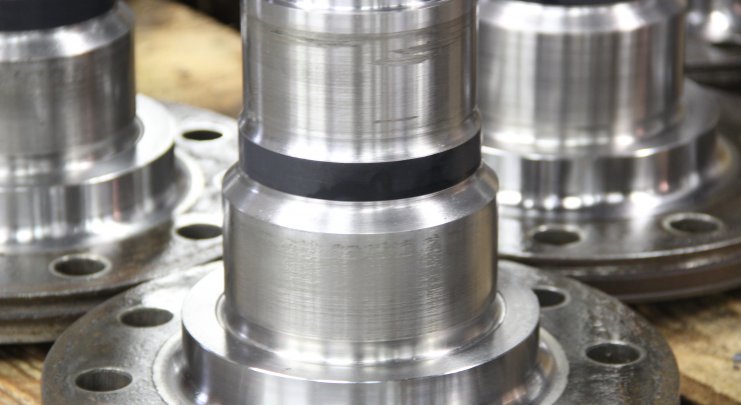

The seal fittings will be provided with a ceramic coating that will ensure that wear is kept to a minimum.
-
Abrasive wear
Wear deformation caused by surfaces or particles rubbing on one another. The abrasive is made up of a hard and/or sharp...
-
Fretting (pitting)
Fretting is a type of wear that occurs as a result of undesired tiny movements between two components. Consequently, wear...
Specifications
| Principle dimensions (LxWxH): Ø280x296mm | Base material: 1.0552 (GS52) | Coating: Aluminum Oxide / Titanium Oxide |
