Case studies
Shaft sleeve
Applied in: Pump Industry | Chemical Industry
- Previous
- Next
Problem, idea and solution
-
Problem

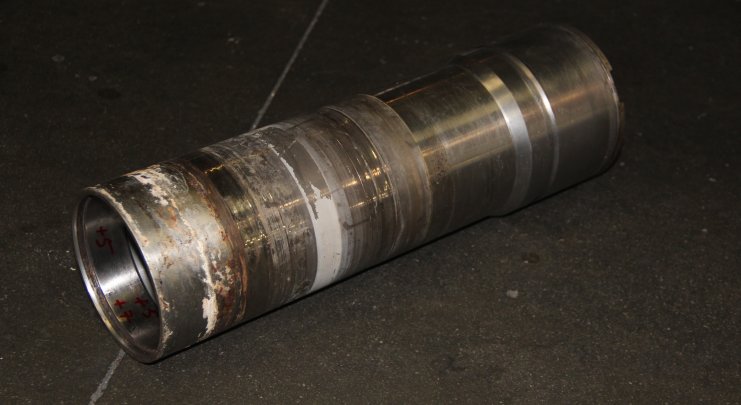

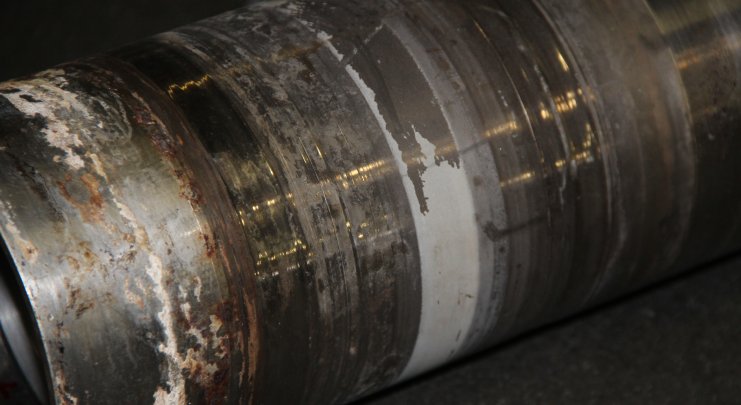

This axle bush was mounted in a pump which pumps an acidic medium. The untreated axle bush was found to be inadequately resistant to this medium at the location of the seals. After initial checks the axle bush appeared to be irreparable.
-
Solution

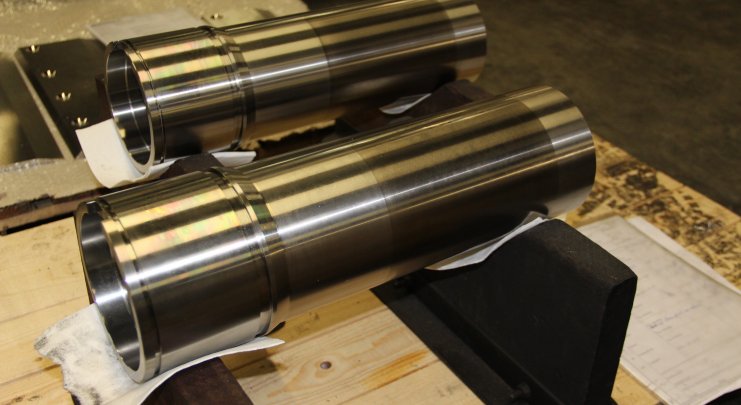

Revamo made new axle bushes and provided them with an acid-resistant, wear-resistant layer at the seal location.
-
Chemical attack
A type of wear that occurs as a result of an (electro)chemical reaction between the component and the surrounding...
-
Abrasive wear
Wear deformation caused by surfaces or particles rubbing on one another. The abrasive is made up of a hard and/or sharp...
Specifications
| Principle dimensions (LxWxH): Ø145x457mm | Base material: 1.4404 (Aisi 316) | Coating: NiCrMo |
