Shut-off valve reaction vessel
Applied in: Chemical Industry | Mechanical Engineering
- Previous
- Next
Problem, idea and solution
-
Problem

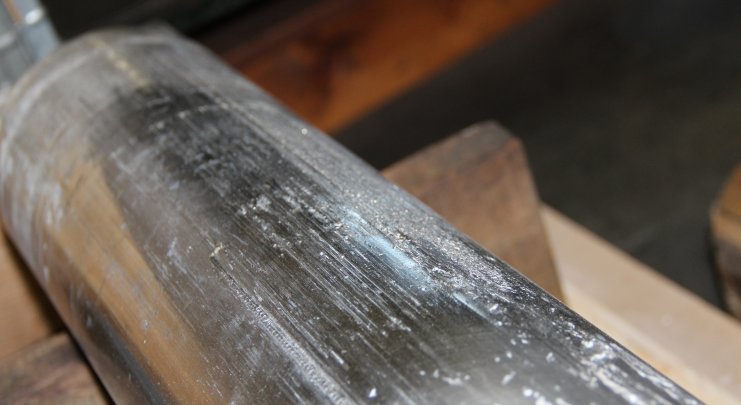

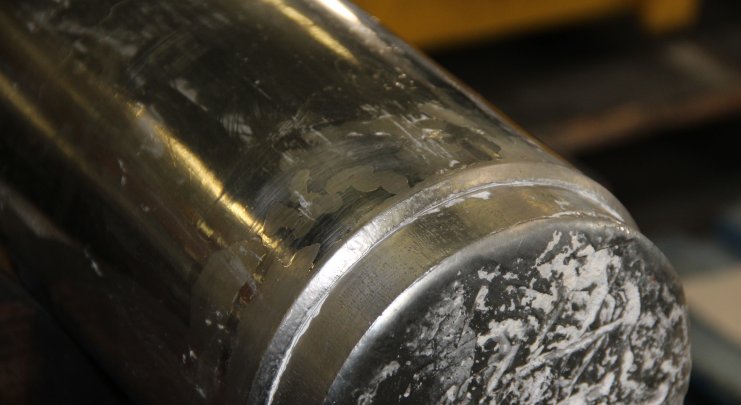

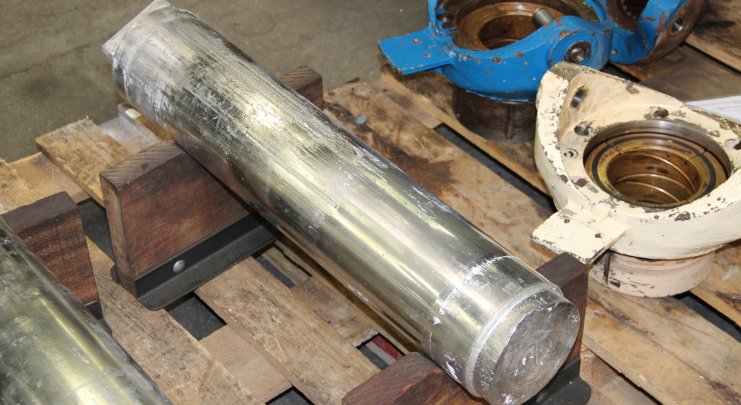

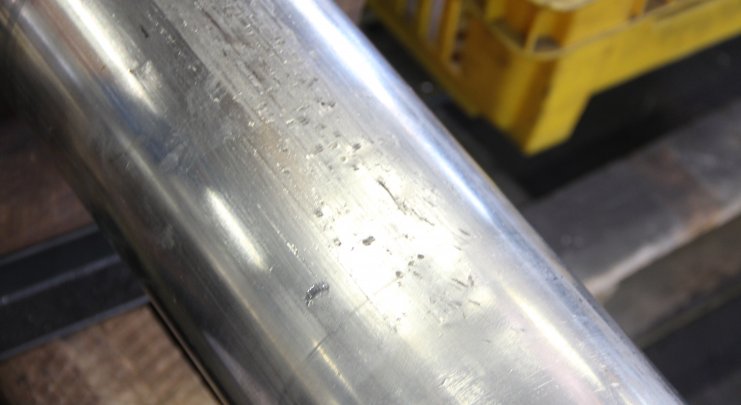

This plunger closes off a reaction vessel containing a highly abrasive medium. When opening the shut-off valve the medium travels through the valve at high speed. The standard hard chrome layer cannot withstand these conditions.
-
Solution

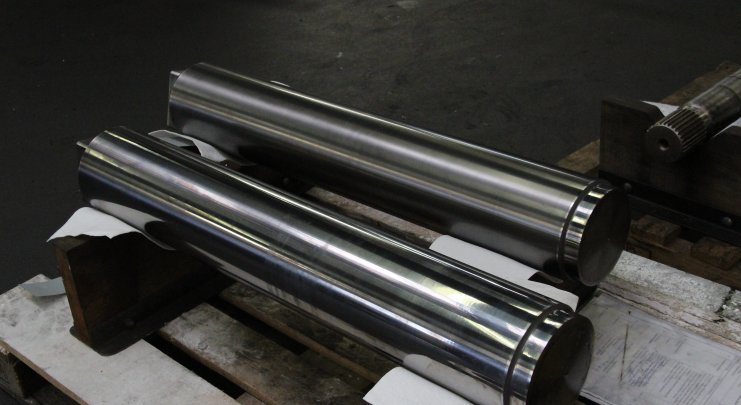

Revamo applied a tungsten carbide layer to the plunger and ground and polished it.
The lifespan of the plunger has increased enormously.
The plungers are now also completely manufactured by Revamo. -
Abrasive wear
Wear deformation caused by surfaces or particles rubbing on one another. The abrasive is made up of a hard and/or sharp...
-
Chemical attack
A type of wear that occurs as a result of an (electro)chemical reaction between the component and the surrounding...
Specifications
| Principle dimensions (LxWxH): Ø150x753mm | Base material: 1.4404 (Aisi316) | Coating: Wolframcarbide |
