Problem, idea and solution
-
Problem

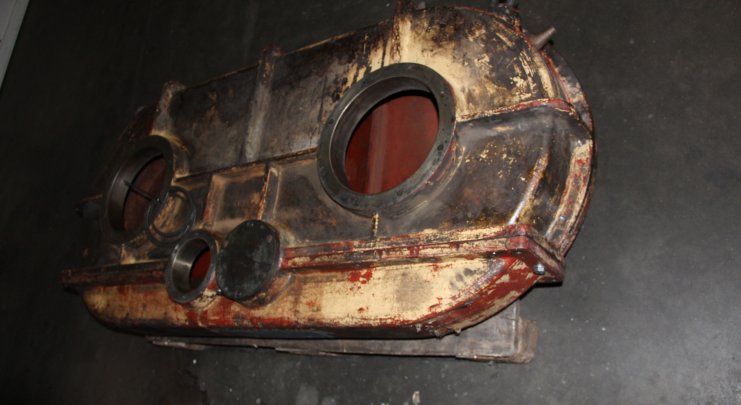

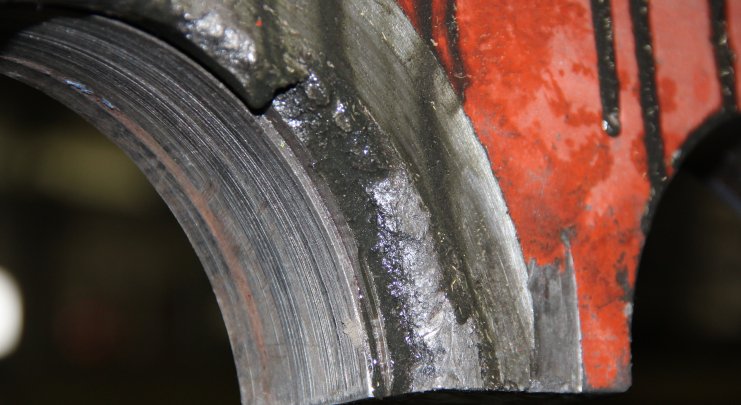

As a result of fretting, the bearing fitting became worn out. Subsequently, the bearing stuck and was broken in pieces.

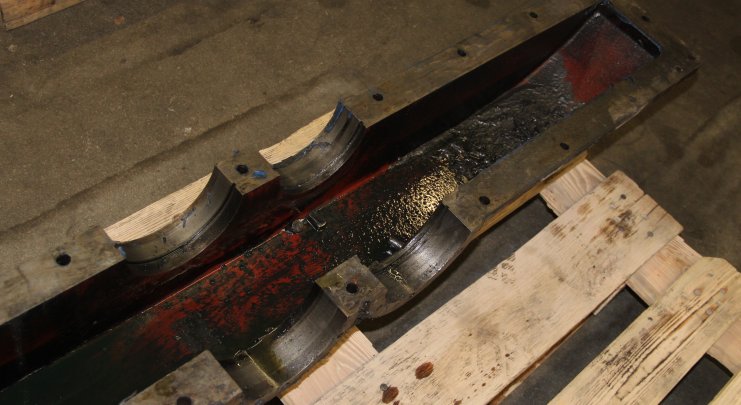

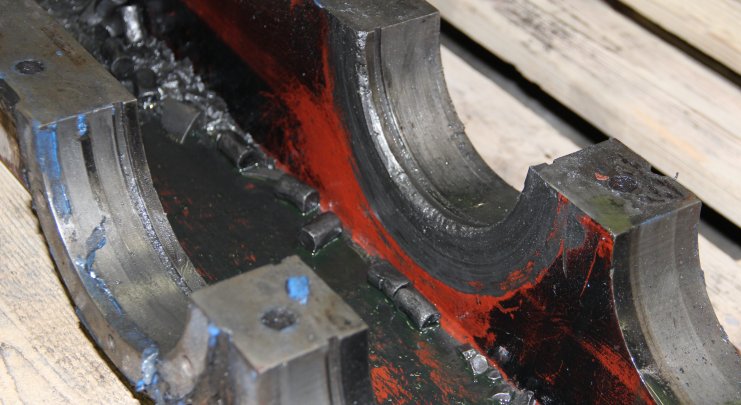

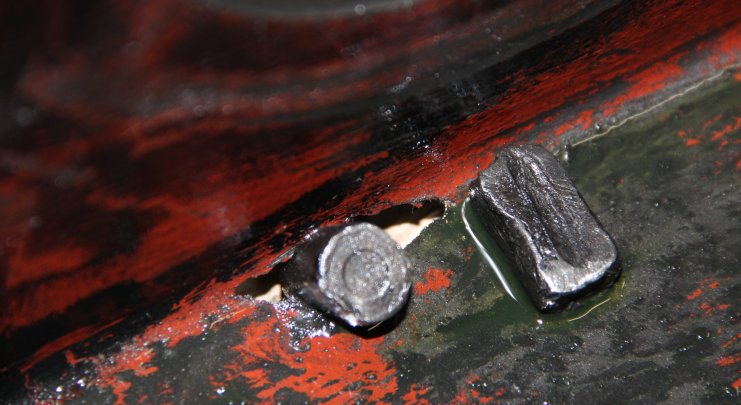

A piece of the axle casting is broken. A bearing roller has beaten a hole in the casting. -
Solution

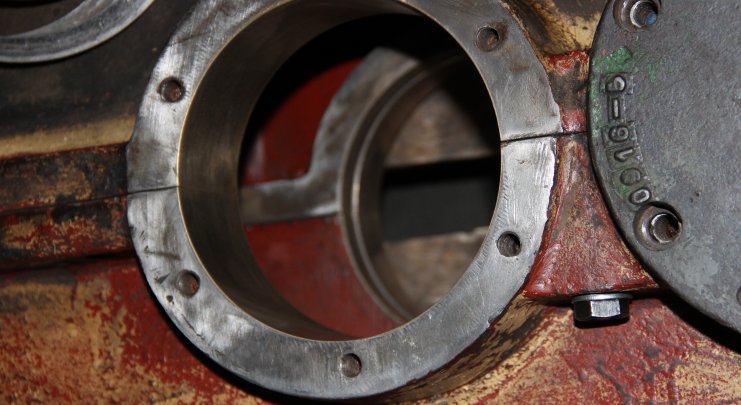

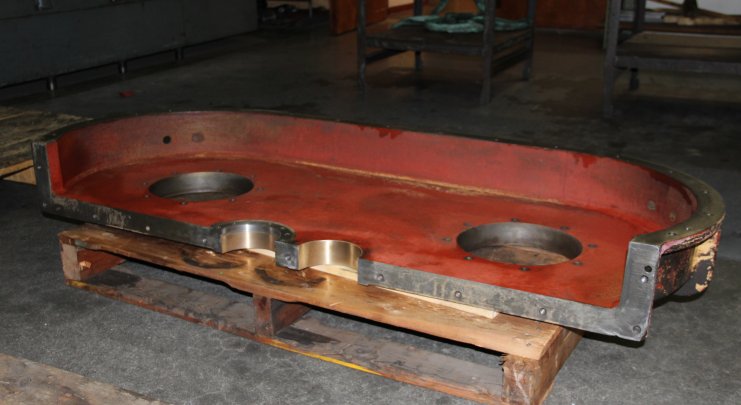

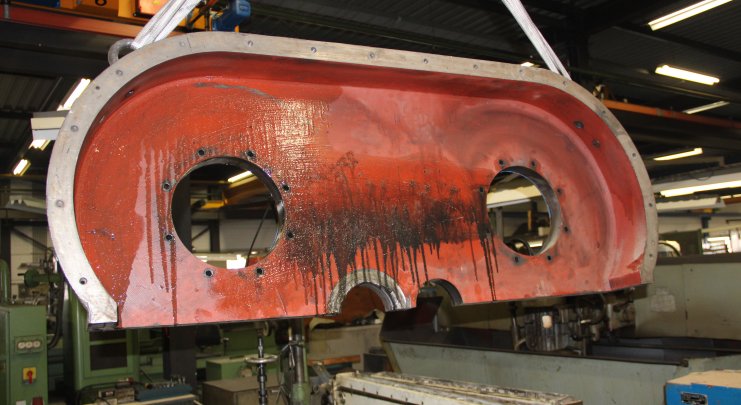

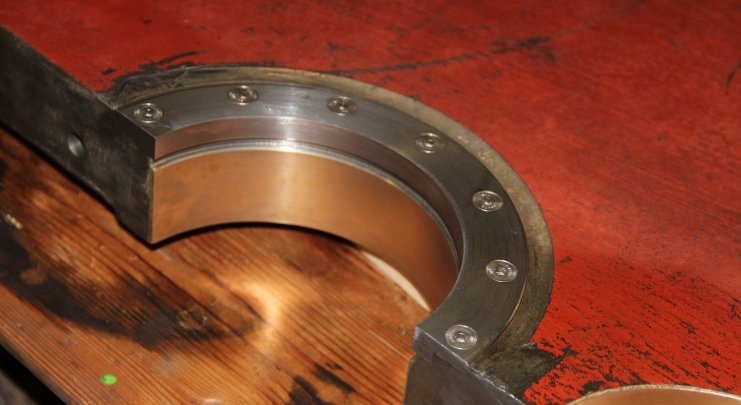

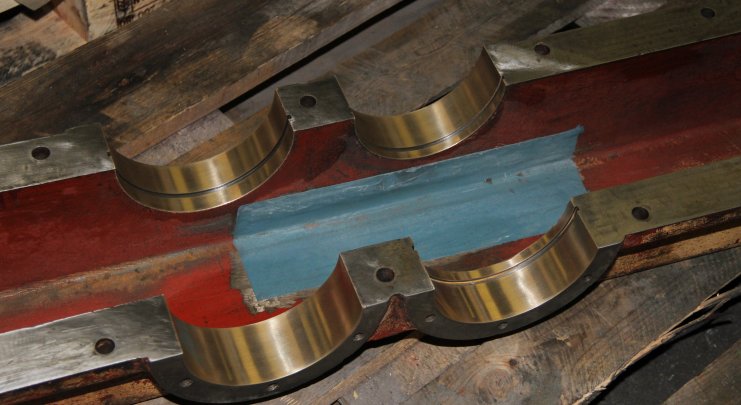

Bearing fittings are repaired by flame spraying. The retaining ring groove is repaired using an insert.
The hole is sealed with an epoxy filling. -
Fretting (pitting)
Fretting is a type of wear that occurs as a result of undesired tiny movements between two components. Consequently, wear...
-
Dimensional recovery
Every type of wear requires dimensional recovery. Dimensional recovery is also required when a design or machining error...
Specifications
| Principle dimensions (LxWxH): 1.630x770x230mm | Base material: 0.6025 (GG25) | Coating: Bronze |
