Double-acting cylinder special
Applied in: Shipping
- Previous
- Next
Problem, idea and solution
-
Problem

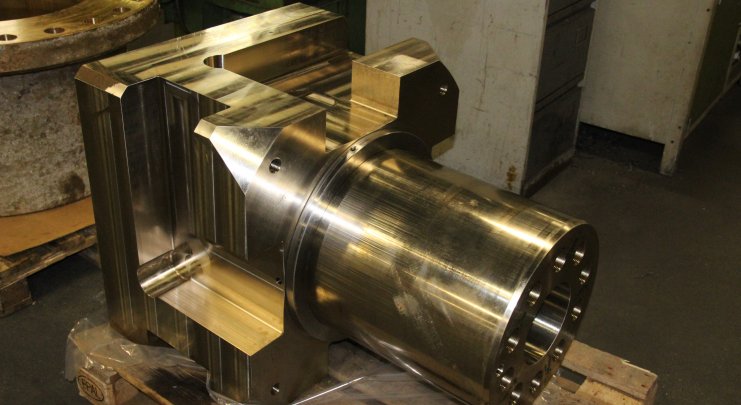

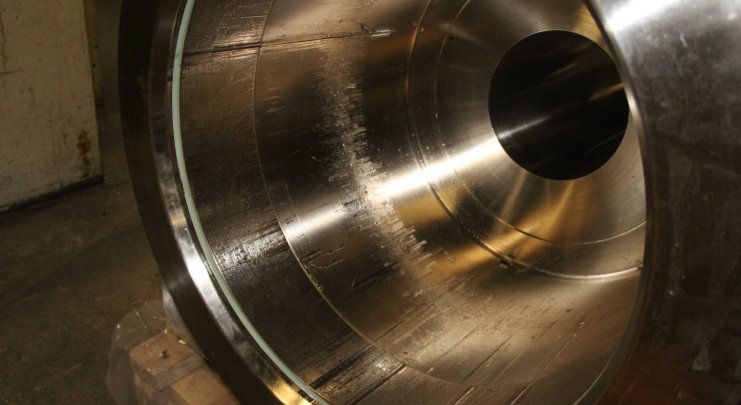

The internal bore, the outer piston fitting and the keyways of this double-acting hydraulic cylinder are worn out. Hydraulic pressure up to 240 bar.
-
Solution

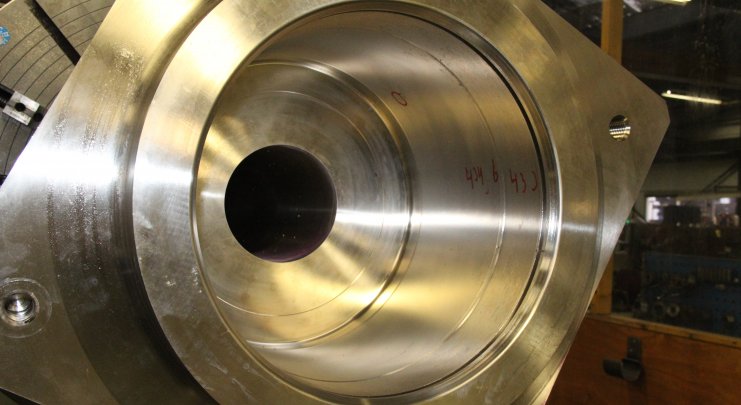

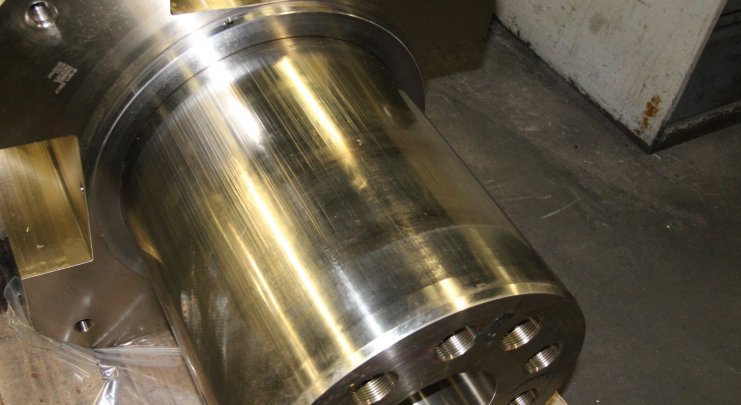

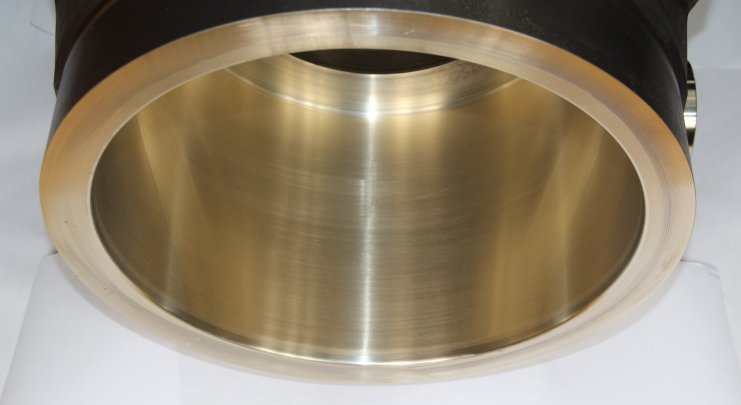

The internal bore and the external piston fitting are restored by flame spraying and grinding.
The keyways are milled oversize. The repair was carried out at the request of the customer under DNV certification and fully photo-documented.
-
Abrasive wear
Wear deformation caused by surfaces or particles rubbing on one another. The abrasive is made up of a hard and/or sharp...
-
Dimensional recovery
Every type of wear requires dimensional recovery. Dimensional recovery is also required when a design or machining error...
Specifications
| Principle dimensions (LxWxH): Ø970x.1059mm | Base material: 2.0936 (MnAl-bronze) | Coating: Bronze |
