Punch infeed table
Applied in: Mechanical Engineering
- Previous
- Next
Problem, idea and solution
-
Problem

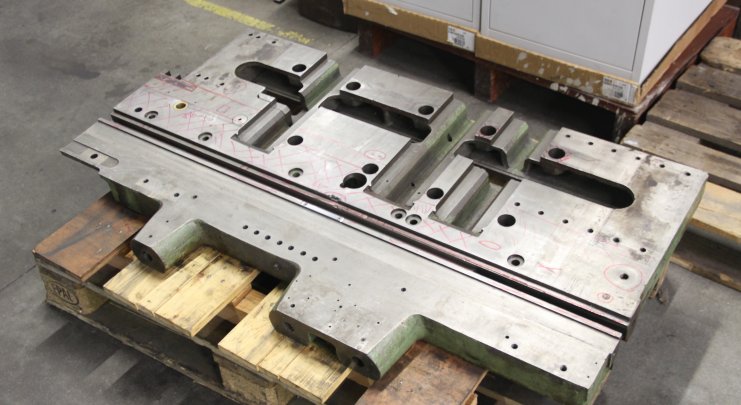

This is a feed-table for a can punch. The casting is badly worn out and there are pieces broken off at the location of the guide.
-
Solution

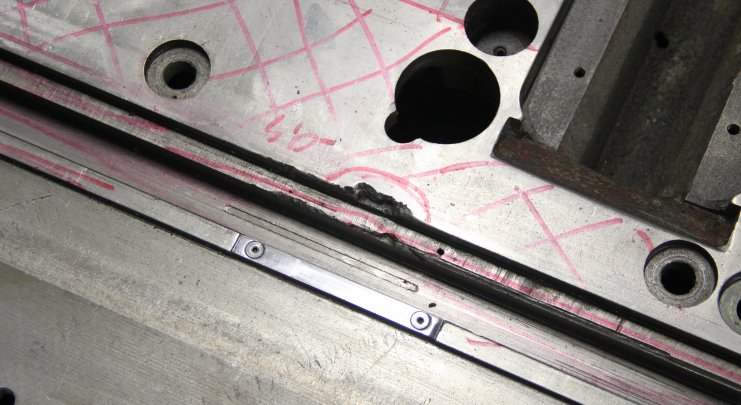

Revamo repaired the guide by inserting steel inserts.

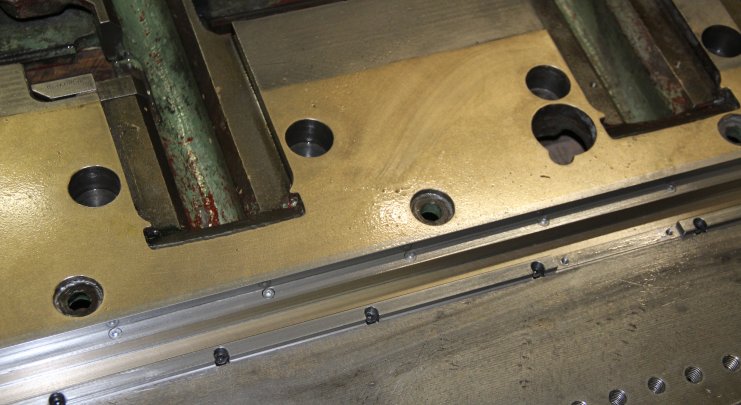

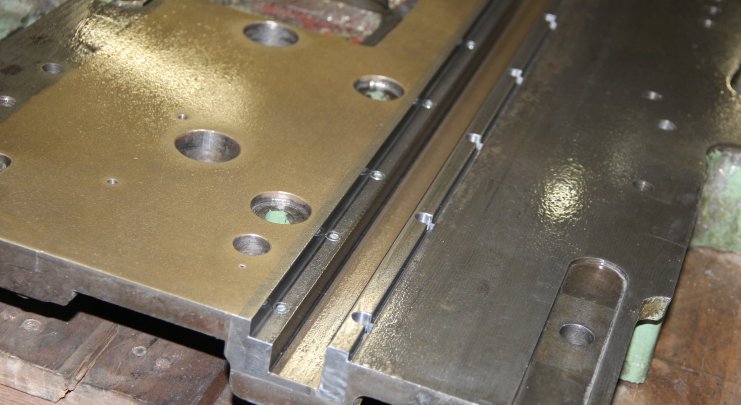

The flat plane was repaired by flame spraying and milling.
-
Abrasive wear
Wear deformation caused by surfaces or particles rubbing on one another. The abrasive is made up of a hard and/or sharp...
-
Dimensional recovery
Every type of wear requires dimensional recovery. Dimensional recovery is also required when a design or machining error...
Specifications
| Principle dimensions (LxWxH): 1.259x703x76mm | Base material: 0.7040 (GGG40) | Coating: Bronze |
