Case studies
Screw compressor housing
Applied in: Pump Industry | Oil, Gas & Energy
- Previous
- Next
Problem, idea and solution
-
Problem

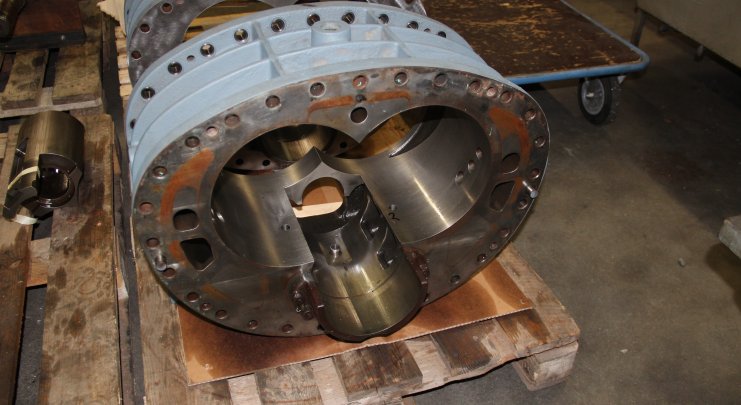

These are components of a rotary screw compressor. The medium to be pumped has been changed.
The new medium is much poorer, resulting in insufficient lubrication and therefore, adhesive wear and fretting occurs. -
Solution

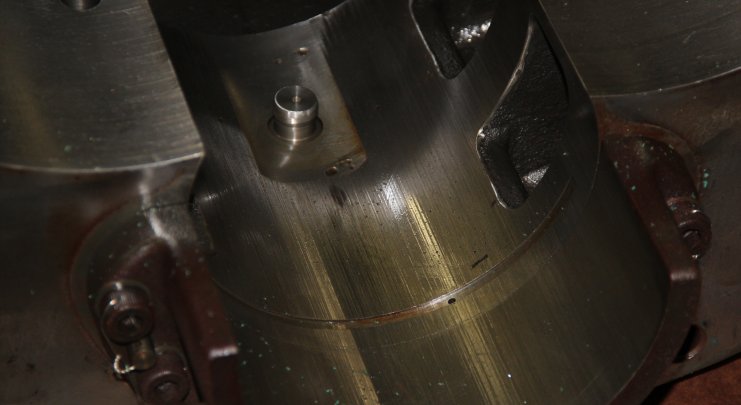

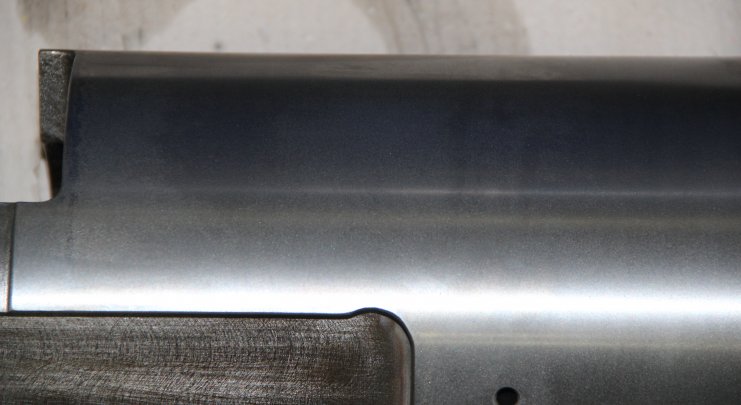

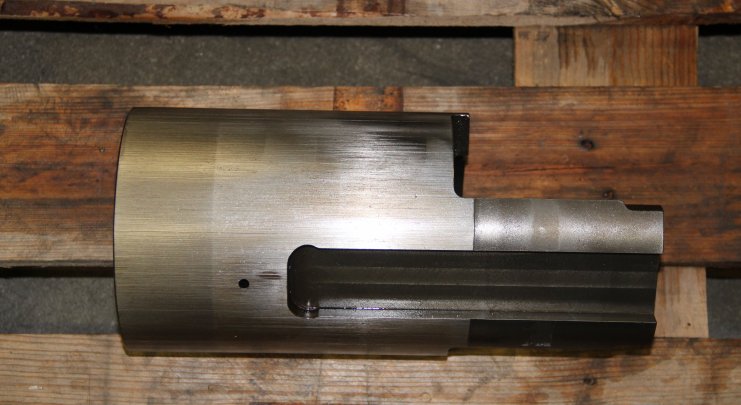

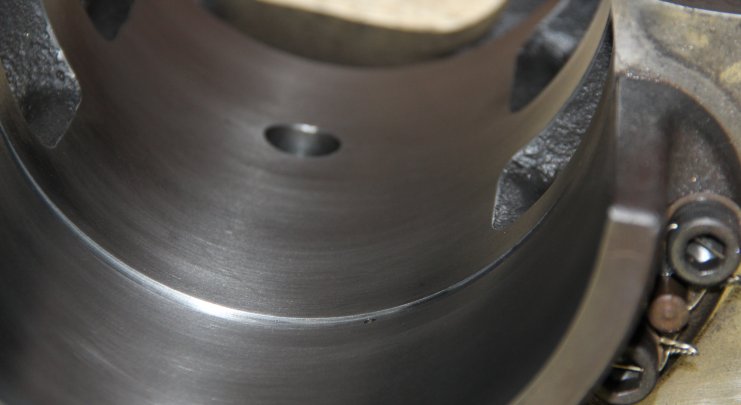

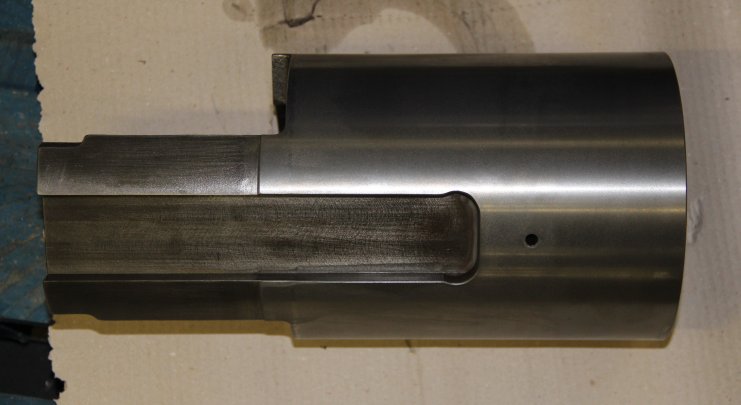

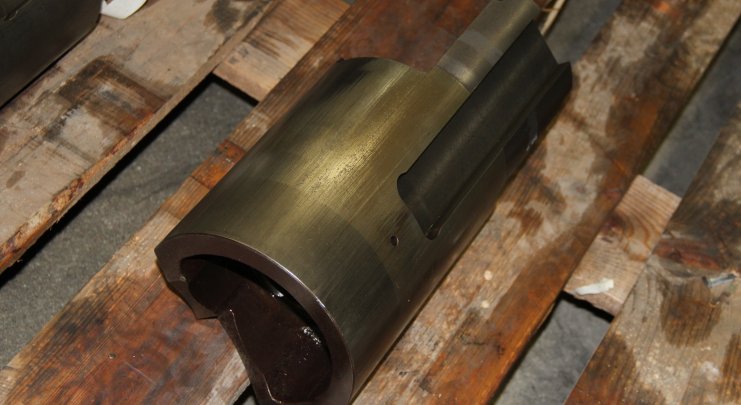

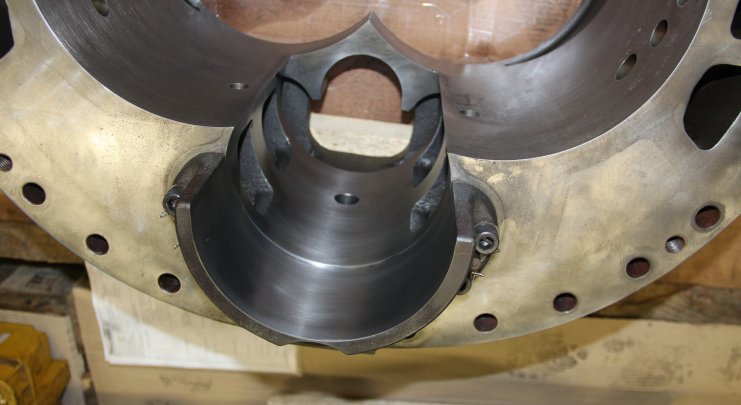

Revamo ground the housing bore to oversize. The capacity valve in which it is mounted was provided with molybdenum.
This coating has self-lubricating properties.
-
Fretting (pitting)
Fretting is a type of wear that occurs as a result of undesired tiny movements between two components. Consequently, wear...
-
Adhesive wear
A type of wear that occurs when components that slide over each other temporarily fuse together and break loose...
Specifications
| Principle dimensions (LxWxH): 680x508x285mm | Base material: 0.6025 (GG25) | Coating: Molybdeen |
