Mixer disc
Applied in: Mechanical Engineering
- Previous
- Next
Problem, idea and solution
-
Problem

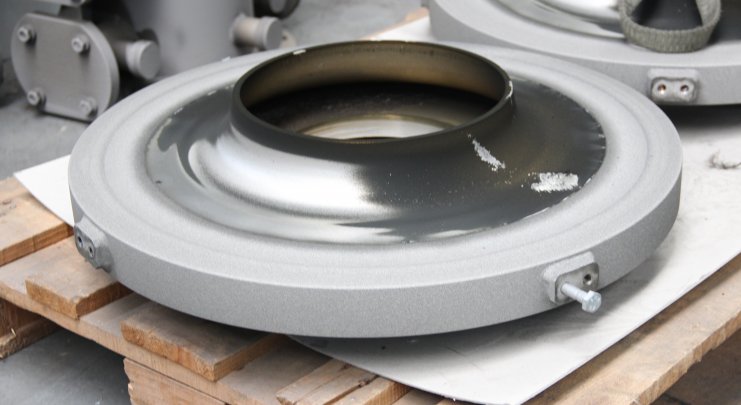

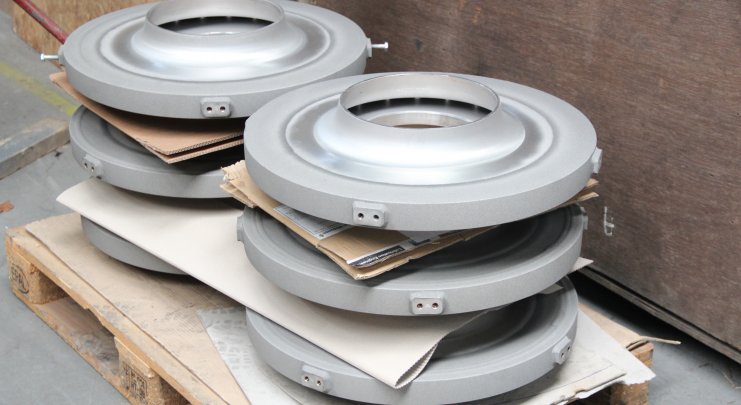

These disks rotate in an abrasive and corrosive environment. The discs are fully tailor-made, and still need to be welded to an axle.
-
Solution

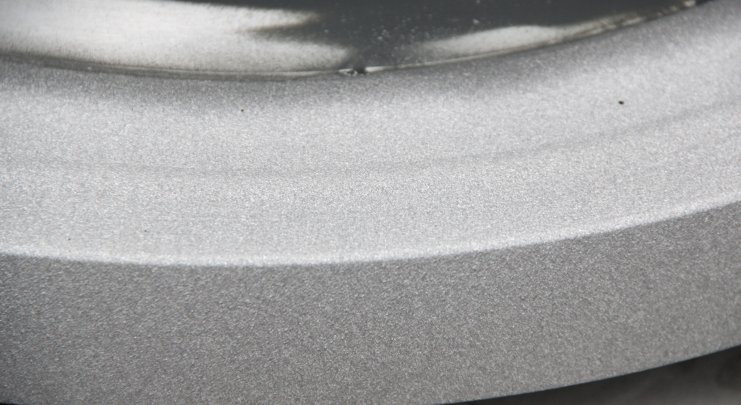

The discs are coated with Stellite.
Because flame spraying is a "cold" process, the component does not deform, and the fittings remain intact.

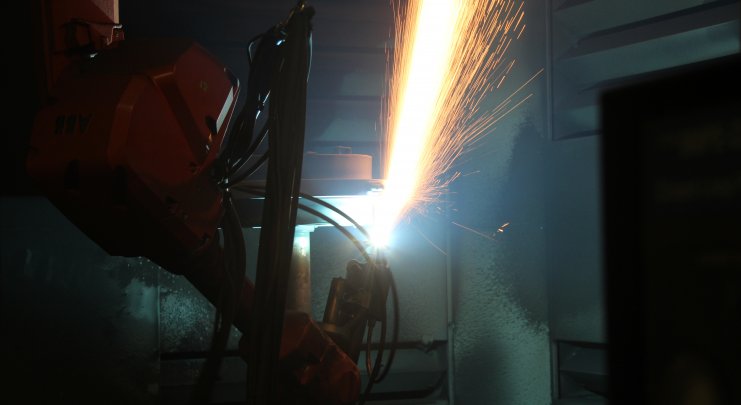

The discs are coated by the robot.
-
Abrasive wear
Wear deformation caused by surfaces or particles rubbing on one another. The abrasive is made up of a hard and/or sharp...
-
Chemical attack
A type of wear that occurs as a result of an (electro)chemical reaction between the component and the surrounding...
Specifications
| Principle dimensions (LxWxH): Ø630x170mm | Base material: 1.4404 (Aisi 316) | Coating: Stelliet |
