Case studies
Linear sliding bearing
Applied in: Mechanical Engineering
- Previous
- Next
Problem, idea and solution
-
Problem

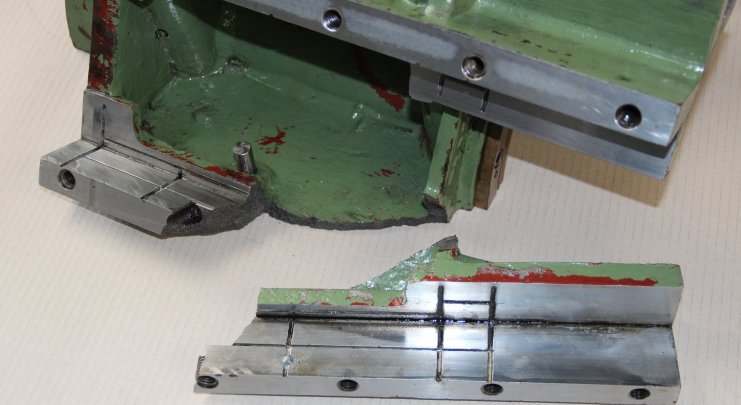

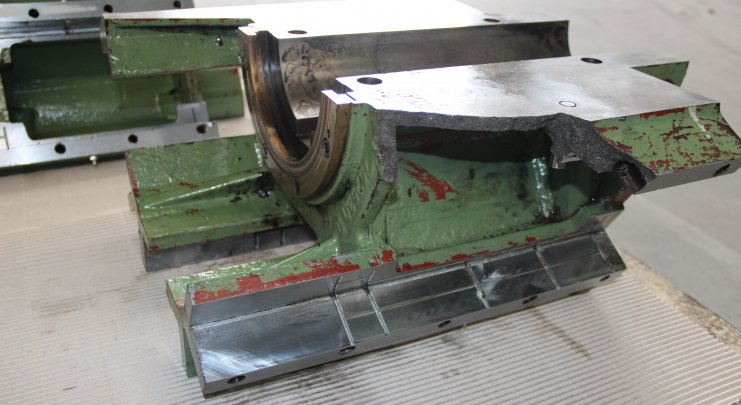

Component functions as a linear slide bearing. Varying loads have led to fatigue, which has left the sliding surface broken causing the slider to become stuck. Subsequently, the casting has broken.
-
Solution

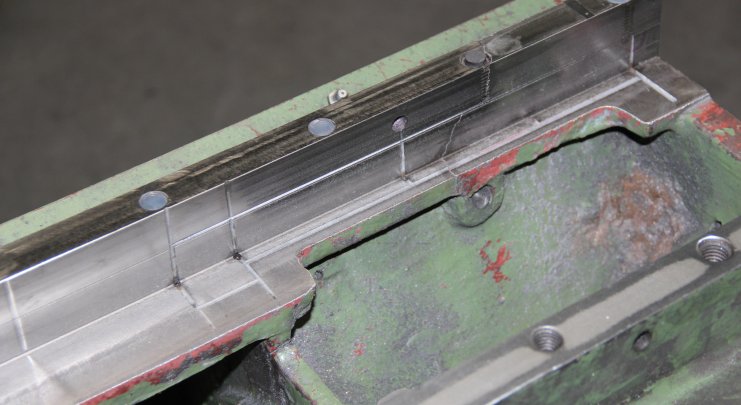

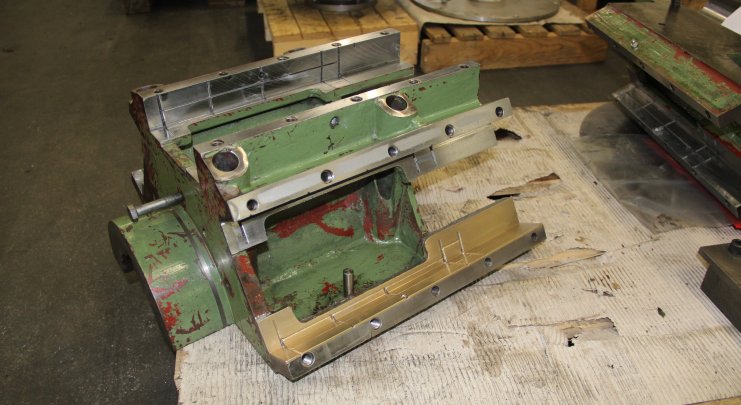

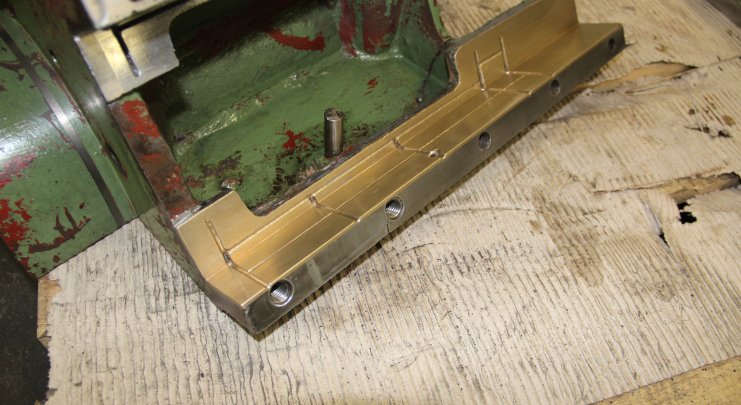

The casting was repaired by means of clips. The bearing surfaces were then restored to their original dimensions by flame spraying, milling and grinding.
-
Surface fatigue
A type of wear in which cracks appear in the material as a result of repeatedly changing loads. Pieces of the material will often...
-
Dimensional recovery
Every type of wear requires dimensional recovery. Dimensional recovery is also required when a design or machining error...
Specifications
| Principle dimensions (LxWxH): 500x250x485mm | Base material: 0.6040 (GG40) | Coating: Bronze |
